High Voltage DC
Silicon Rubber Cables
20kV DC Screened Silicon Wire
APPLICATIONS:
The single core cables are suitable for high-voltage cabinet, power system, high voltage electric machineries,
television receivers, transformers,high-voltage cables for electronic instruments, etc.
Rated Voltage:
20kV

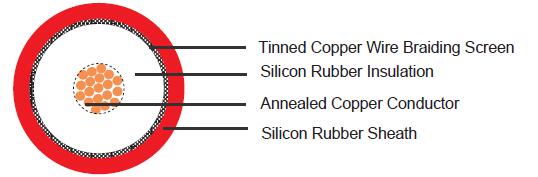

CONSTRUCTION:
Conductor: Annealed copper conductor, class 5.
Insulation: Silicon rubber.
Screen: Tinned copper wire braiding.
Sheath: Silicon rubber.
COLOR CODE:
Red, (other colours upon request).
PHYSICAL PROPERTIES:
Operating Temperature: -45°C-180°C
Dimension Data:
Part NO. |
Conductor |
Approx. Overall Diameter |
||
|---|---|---|---|---|
No. of Core X Cross Section |
No./Nominal |
Nominal Diameter |
||
|
mm² |
No./mm |
mm |
mm |
20DC-SCS-1C0.20 |
1x0.20 |
7/0.20 |
0.6 |
5.7 |
20DC-SCS-1C0.35 |
1x0.35 |
19/0.16 |
0.8 |
5.9 |
20DC-SCS-1C0.50 |
1x0.50 |
16/0.2 |
0.94 |
6.1 |
20DC-SCS-1C0.75 |
1x0.75 |
24/0.2 |
1.2 |
7.3 |
20DC-SCS-1C1.0 |
1x1.0 |
32/0.2 |
1.34 |
7.5 |
20DC-SCS-1C1.5 |
1x1.5 |
30/0.25 |
1.6 |
8.1 |
20DC-SCS-1C2.5 |
1x2.5 |
49/0.25 |
2.1 |
9.0 |
20DC-SCS-1C4.0 |
1x4.0 |
56/0.3 |
2.61 |
10.0 |
20DC-SCS-1C6.0 |
1x6.0 |
84/0.3 |
3.21 |
10.8 |
